2 in 1: Trap and monitoring
Trap-catch or monitoring sensor. Convertible 2-in-1 function.
Direct connection via SIM
Our magnetic control prevents triggers caused by vibrations.
No false alarms
Our magnetic control prevents triggers caused by vibrations.
The best and safest
radio standards in the world:
NB-IoT and LTE-M. So that
you are sure.
Thanks to powerful sensors and smart AI
, the Tubetrap can distinguish between catches.
There is also an optional schedulable motion detector mode.
The trap can only be sensor-controlled
be triggered. i.e. a mouse must
Activate the sensor so that the technology
(impact trap) is triggered.
No more false alarms.
Convincing facts:
Battery life: 3 years.
Battery change: 4 seconds.
Recharging: 8 hours.
5 seconds Installation. Scanning,
Tighten, close the lid, done.
An LED shows the current status of the
Trap on. How to operate the trap
even without the use of a smartphone.
Emitter Tubetrap
The one box that can do everything, without risk.
The Tubetrap is the perfect trap for sophisticated pest control: no more false alarms. Rodents are detected by a sensor and safely caught. Never miss a pest again and minimize your risk. Change the mode of the trap when and where you want. For example, in compliance with animal welfare legislation, from Monday to Friday on “catching” for the food industry and “monitoring” at the weekend.
The Emitter Tubetrap is our champion, equipped with the latest technology for maximum safety and long-term use.
Emitter Tubetrap
The one box that can do everything, without risk.
- 2 in 1: Trap and monitoring
- Direct connection via SIM
- No false alarms
The Tubetrap is the perfect trap for sophisticated pest control: no more false alarms. Rodents are detected by a sensor and safely caught. Never miss a pest again and minimize your risk. Change the mode of the trap when and where you want. For example, in compliance with animal welfare legislation, from Monday to Friday on “catching” for the food industry and “monitoring” at the weekend.
The Emitter Tubetrap is our champion, equipped with the latest technology for maximum safety and long-term use.
The best and safest
radio standards in the world:
NB-IoT and LTE-M. So that
you are sure.
Thanks to powerful sensors and clever
AI , the Tubetrap can catch
differentiate. Optional
there is a plannable
Motion detector mode.
AI , the Tubetrap can catch
differentiate. Optional
there is a plannable
Motion detector mode.
The trap can only be sensor-controlled
be triggered. i.e. a mouse
must
activate the sensor so that
the technology
(impact trap) triggered
will.
No more false alarms.
Convincing facts:
Battery life: 3 years.
Battery change: 4 seconds.
Recharging: 8 hours.
5 seconds Installation. Scanning,
Tighten, close the lid, done.
An LED indicates the current
Status of the Trap on. So
you can use the trap
serve even without the
Use of a Smart
phones.
Status of the Trap on. So
you can use the trap
serve even without the
Use of a Smart
phones.
60+
Countries
Our IoT products are used by leading companies worldwide.
Made in Germany
Our products have been developed and manufactured in Germany since 2006.
1000+ customers
We develop closely with our customers to maximize product quality and service life.
Long battery life, up to 3 years
Our rechargeable batteries last up to 3 years, whether at +60°C or -20°C. You can swap the batteries in seconds. You can rely on our high-quality and tested batteries.
Everything you need to know about the Tubetrap
The Tubetrap is a high-tech all-rounder for pest control against mice and rats. See for yourself.
24/7 monitoring

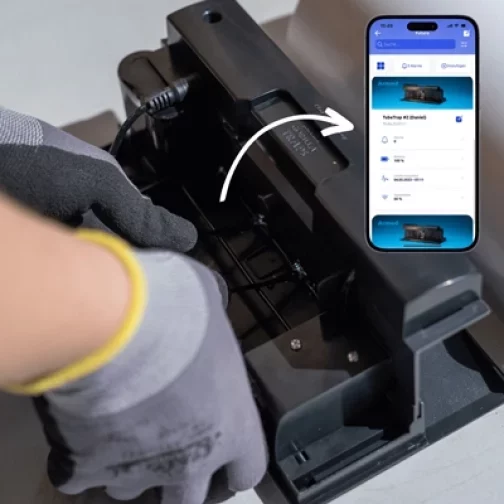

Scan the QR code in seconds, spring the trap and you’re done. Thanks to secure MQTT transmission via the best network in the world, you can rely on us.
Humane trapping
Thanks to the 4 impact bars, the TubeTrap catches mice and rats at lightning speed and very humanely (see Animal Welfare Act) with enormous force.
Hygiene wall
The safe hygienic wall in the middle of the Tubetrap separates the trapped rodents and their potential excretions from the user’s hand. This allows you to dispose of the rodents virus- and germ-free at a distance and activate the metal bracket. In addition, the check only takes a few seconds and is 100% safe (even for non-professional users in accordance with the IfSG).
Monitoring solution
The Tubetrap can be switched to monitoring mode remotely using the Emitter app or the portal. In this mode, the trap only detects movement, but does not trigger.”
“The portal also offers the function of automatically setting the monitoring mode at recurring intervals. This allows traps to be operated in “catch mode” from Monday to Friday, for example. At weekends, when no employee is on site to dispose of a trapped mouse within 24 hours, the monitoring mode still offers the option of detecting movements. This setting can be transferred to any number of Tubetraps.
Customized data transmission
You have a own software? No problemThanks to our secure API, we can also dock Emitter directly with you and integrate the information into your software solution. We have already demonstrated this in over 30 projects and support these solutions with our strong team worldwide.

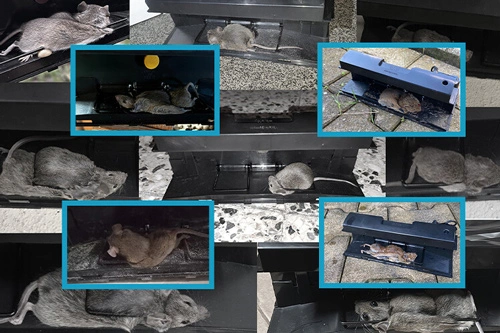

Catching mice and rats

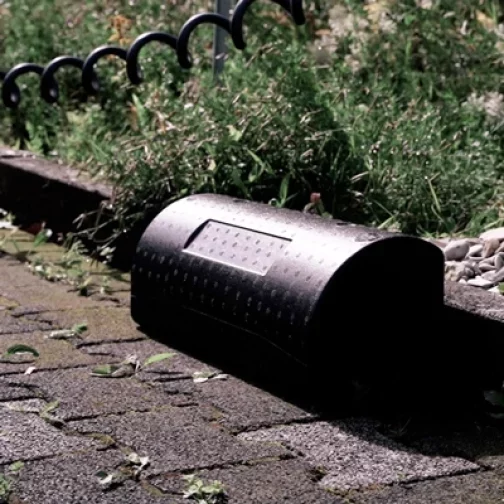

With the Runbox Smart made of robust EPP, we have built a new box that holds the Tubetrap and can also be used outdoors to protect against rats and mice. The robust EPP box is extremely flexible and can also be used with our Emitter Cam or Emitter Direct rat trap as well as with analog traps or baits.
Active catching vs. monitoring mode
The Tubetrap can be set to different modes via the app or the portal. Depending on the activity, the app notifies you with different status images to show you exactly what has happened with your trap: trap sprung, mouse caught, movement detected and more.
Pro tip: Many Tubetrap customers use the monitoring function over the weekend, as during this time no employee can empty the traps in accordance with the law if rodents have been caught. Weekend mode can be set via the portal.

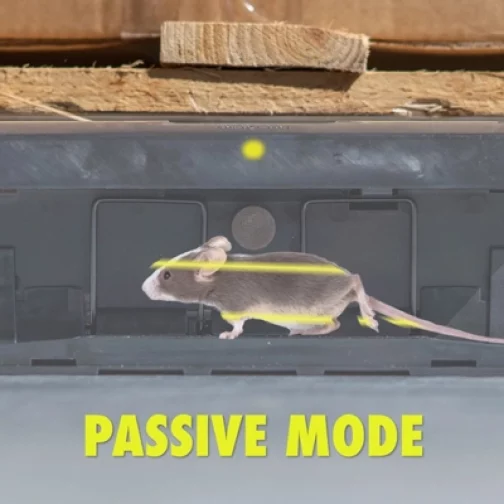

On freely selectable days, the TubeTrap can be set to “PASSIVE” and detect and report rodent movements. Just like a PIR or motion detection sensor, only safer, thanks to proven emitter quality. This way you won’t miss any rodent activity. You can switch from active to passive via the app or online – no matter where you are. In the app, you will receive a message with a yellow information icon when a rodent is active, informing you of its movement.

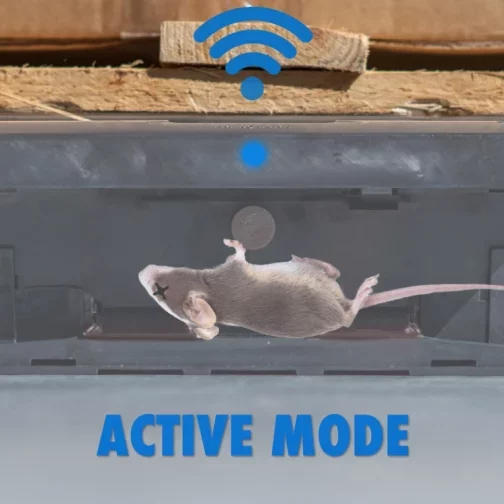

When set to ACTIVE, the Tubetrap strikes and actively catches rodents in compliance with animal welfare regulations. This is also our recommendation, as the following applies to most standards: “Catching is also a form of monitoring”. However, if you are unable to comply with the 24-hour monitoring rhythms (TSchG) at weekends or on public holidays, you can of course also schedule the monitoring function and enjoy complete security. The catch is displayed in the app with a red information icon.
Status information via LED
The TubeTrap has a built-in LED that signals important trap status information in 4 different colors. For example, the LED flashes blue during the network search and shows you in green that it is active and connected.
The traps transmit the current status every 23 hours, regardless of this.
What we offer
Made in Germany, since 2006
We are proud that we have been manufacturing all our emitter products in Germany since 2006. This stands out because our IoT devices have an average service life of 10 years. We work with leading companies such as Bosch, Fraunhofer Institute, Telekom and many other top players to create unique innovations that are exported worldwide, something we are very proud of.
Training and installation
Installation is super quick and super easy. Nevertheless, you can always rely on our support. When you order, you will receive a video with all the details on how to set it up. However, if you would like training for your company or your customers, we can offer this at any time. Either digitally via video call or as an on-demand webinar and, of course, at your premises or ours, anywhere in the world.
Family Power
As an independent family business, we can afford to plan and invest for the long term. In over 20 years of company history, we have already invented many innovations and supplied them to leading pest control companies worldwide. We are not looking for short-term profit, but want to build a strong, innovative company for the long term that is your one-stop shop for high-quality IoT solutions you can rely on.
IoT intelligence directly on your cell phone
Tubetrap app functions at a glance
Our Emitter App has been used for over 10 years in over 30 countries by leading professionals and end users and you can install the Tubetrap with the app in under 5 seconds. Installation, release control, catch management, image management, free customer logins, temperature monitoring and much more can be controlled in our app as well as in our online portal. For example, the battery capacity is displayed directly in the Emitter app or in the online portal and if the battery falls below 25%, you will automatically receive an email for planning purposes. Of course you can also view all your Tubetraps in the Google Map.
Create and manage
In the overview, you can manage customer locations and create, change and manage all emitter products simply and easily.
Overview
See everything at a glance, via text but also with the emitter icons, which show you an up-to-date picture of your Tubetrap status.
Control
Check anytime and anywhere whether anything has happened in your traps and receive automatic push notifications about catches.
Catch and monitoring
Receive recorded movement or catches from the Tubetrap directly to your smartphone in seconds.
THE EMITTER APP
Connected Tubetraps, Outdoor Direct and Pestcam, all in one app with the most secure software in our new Emitter Portal.
100% compatible
with NARA Stic
Monitoring with Nara is world-famous and that doesn’t need much explanation. Nara Stic therefore also fits the Tubetrap in all flavors: meat, fish, chocolate, mango and the classic vanilla.
We would also like to offer an adapter for bait blocks in the near future, so that the Tubetrap can also be used for Non-Tox or Tox baits and informs you when it moves. Subscribe to our newsletter for more.
From practice for practice

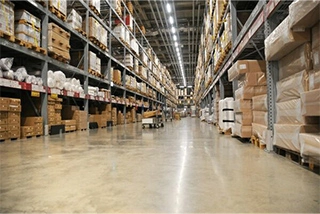

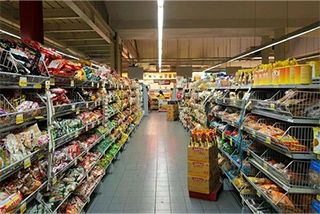

Tubetrap can be used in industry & trade
Tubetrap has been developed for industry & trade. Leading end customers from the food industry as well as supermarket chains and logistics companies have participated and over 10 auditors have shared their requirements with us over the years. Only with such strong customers and partners have we been able to perfect the Tubetrap and build it precisely for your highest requirements.
By actively involving our customers in the development process, Tubetrap is many steps ahead of the competition. It fits perfectly in any scenario: supermarkets, food industry, pharmaceutical industry, warehouses, agriculture or even in your home – everywhere the Tubetrap is your 24-7 pest controller, catching rodents extremely effectively. Irrespective of any possible changes in the law regarding rodenticide use or technical developments. With the Tubetrap you are independent and make the safest decision for your company.
Technical specifications
Product size
245 x 117 x 91 mm
Weight
760 g (incl. battery)
Color
Black (RAL 9005), white (RAL 9016)
Material
ABS plastic
Country of origin
Germany
Dangerous goods
LiFePo4 battery (UN 3481)
EAN
–
Customs tariff number
85437090
WEEE reg. no.
EN 56346613
Communication standard
NB-IoT / LTE-M
Supported end devices
Web portal, Android/iOS app
Energy supply
2S1P 26650 LiFePo4 6.4V, 3600mAh
Battery protection
Explosion-proof
Battery life
~ 2 years (rechargeable)
Break resistance
up to 90 kg
Fall protection
Lintel height up to 120 cm
Fastening
Adhesive anchor/pads, wall bracket (2024)
Impact power
50 Newton
Frequently asked questions (FAQ)
The TubeTrap has 4 different LED sequences, which help the technician to better operate the trap in the field without having to look at the emitter app.
1. blue flashing
If the LED flashes blue, the trap is currently trying to establish a connection to the server and selects the best available network. The connection has been successfully established when the flashing stops.
2. red flashing
If the LED flashes red, the connection was not established successfully and there is currently no connection to the server. The trap is unable to trigger and will attempt to re-establish a connection after a short time interval.
3. green flashing
The green flashing of the LED signals the countdown to calibration and activation of the sensor. The total countdown time is 20 seconds. The lid of the TubeTrap should then be closed to calibrate the sensors.
4th LED lights up purple/magenta
The purple/magenta LED lights up during calibration of the sensor system. At this point, the lid of the trap should already be closed. If this is not the case, the latch should be re-tensioned for optimum functionality and the calibration should be carried out again in the closed state.
The Tubetrap offers the option of switching between two different operating modes. Here you have the option of switching between active and passive mode. Active mode is set at the factory.
Active mode
Active mode is also referred to as “catch mode”. Here the system triggers and catches rodents.
Passive mode
In passive mode, the movement of the pests is detected, information is forwarded and the trap remains cocked.
The operating mode of a Tubetrap can be changed both in the emitter app and in the portal.
App
The mode can be changed in the detailed settings of a Tubetrap by clicking on the middle button at the bottom of the detailed view of the trap and selecting the desired mode.
Portal
In the portal, the mode can also be changed in the detailed view of a Tubetrap. If you want to change the mode of several tubetraps, we recommend using the multiple selection of traps and changing the mode using the yellow button in the bottom right-hand corner.
The Tubetrap always retrieves pending updates or changes to the operating mode during an active connection to the server. This occurs, for example, every 23 hours during keep-alive or in the event of an event such as trap tensioning or triggering.
It is therefore possible that the mode change will not be adopted by the trap until the next keep-alive.
If the Tubetrap has accepted passive mode, this is displayed as a status in the emitter portal and the app. A gray screen in the app means that no movement has been detected in the last 24 hours.
The Tubetrap sends the so-called “MOTION” signals to the server with every keep-alive. If the number of detected movements exceeds 10, the trap sends the signals directly to the server.
The status of the trap in the app and the portal changes according to the movement detected. The different status icons are shown below:
App
Portal
NB-IoT stands for Narrowband Internet of Things and is a type of low-power wide area network (LPWAN) that is specially optimized for communicating small amounts of data over long distances. NB-IoT enables cost-effective, energy-saving connectivity for IoT devices. It uses narrowband radio technology and is particularly suitable for applications that require low bandwidth and long battery life, such as smart meters, environmental sensors or digital monitoring systems.
LTE-M, also known as Cat-M1 (Category M1), is another wireless technology developed for IoT applications. In contrast to NB-IoT, LTE-M offers a slightly higher bandwidth and therefore enables faster data transfer rates.
Energy efficiency: Both technologies are designed to minimize energy consumption, which is crucial for battery-powered IoT devices. They enable a long battery life and are therefore ideal for pest control applications that require low maintenance and long operating times.
Cost optimization: The implementation of NB-IoT and LTE-M is cost-effective. The narrowband nature of NB-IoT and the optimized bandwidth of LTE-M enable cost-effective connectivity for large numbers of devices.
Long range: Both technologies offer excellent range, which means that signals can be transmitted over long distances. This is particularly useful for applications in remote areas or within structures with weak signal coverage.
Network security: As both technologies are based on existing mobile radio infrastructures, they offer the security and reliability of mobile radio networks.
The interpretation of the legislation (Risk Mitigation Measures “RMM”) clearly recommends that the client works with the professional. But only for traps. This is strictly prohibited for rodenticides.
“Accompanying measures during or after the rodent control measure with 2nd gen. anticoagulants (…) as well as searching for and disposing of dead rodents, setting traps and checking monitors or carrying out organizational IPM measures may be carried out by non-professional pest controllers, after instruction by the pest controller.”
The instruction could, for example, be an email explaining how the traps are set / emptied, or a video or ideally an on-site demo of the trap so that the customer has been instructed in person. This means that autonomous control on the customer side is 100% intentional and legally legitimate.
As long as this activity is not carried out “commercially” and the main business of the company is still, for example, a bakery, it is 100% compliant with §4 of the Animal Welfare Act.
